ARC-01N1 ARC-01N3

Category：11.1.2 Hydraulic Floor Jack
Views：86

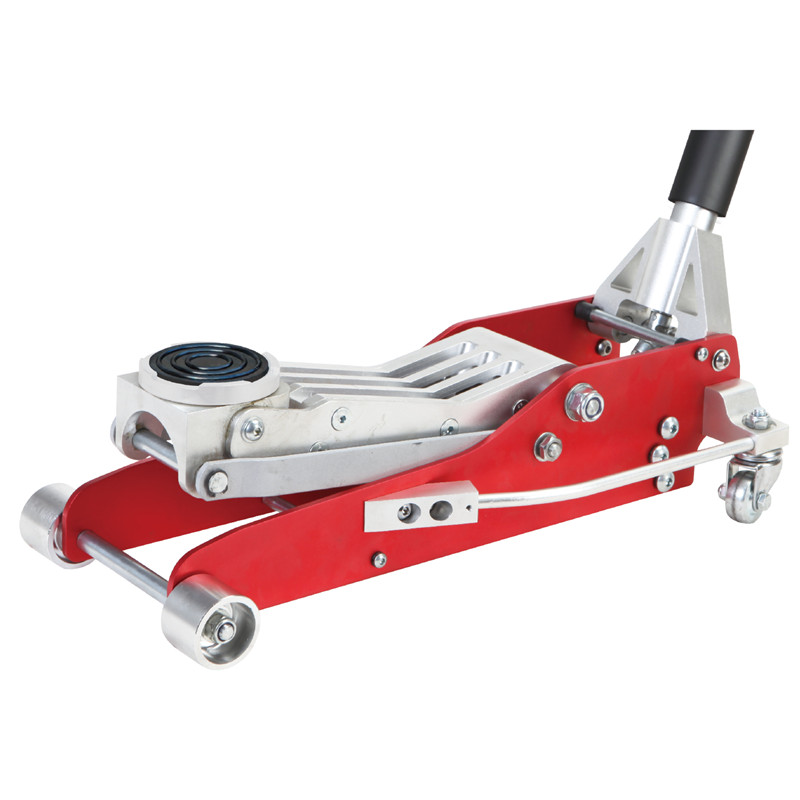

ARC-01N1 1.5Ton Aluminum Jacks
ARC-01N3 2.5/3Ton Aluminum Jacks
Order online

• Safety overload system to prevent use beyond rated capacity.
• Wide stance provides stability under load.
• Built with high strength aircraft grade aluminum.

• Foam bumper on handle to prevent damage to vehicle finish.

Model	Capacity	Min. Height	Max Height	N.W./G.W.	Product Size	Package Size	QTY/20'CY
ARC-01N1	1.5 Ton	85 mm	370 mm	12/13.3 kg	573X253X137 mm	620X295X180 mm	790 PCS
ARC-01N3	3 Ton	98 mm	480 mm	24.4 / 26.5 kg	730X320X180 mm	790X385X220 mm	420 PCS

Product Information

This BIGRED product has a single hydraulic pump piston that effortlessly raises the lift arm. Pump piston dust shields and wiper seals protect the hydraulic system from contaminants. The jack features an overload valve bypass system to prevent jack damage and user injury. Compact design allows use in confined spaces. Easily fits under low vehicles. This product is tested for reliability and safety.
