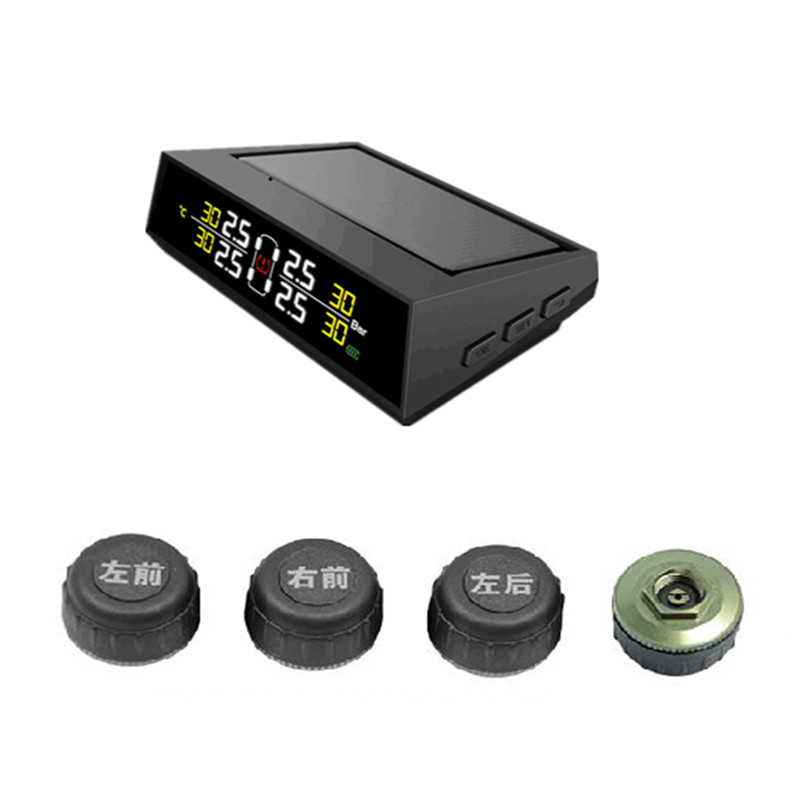

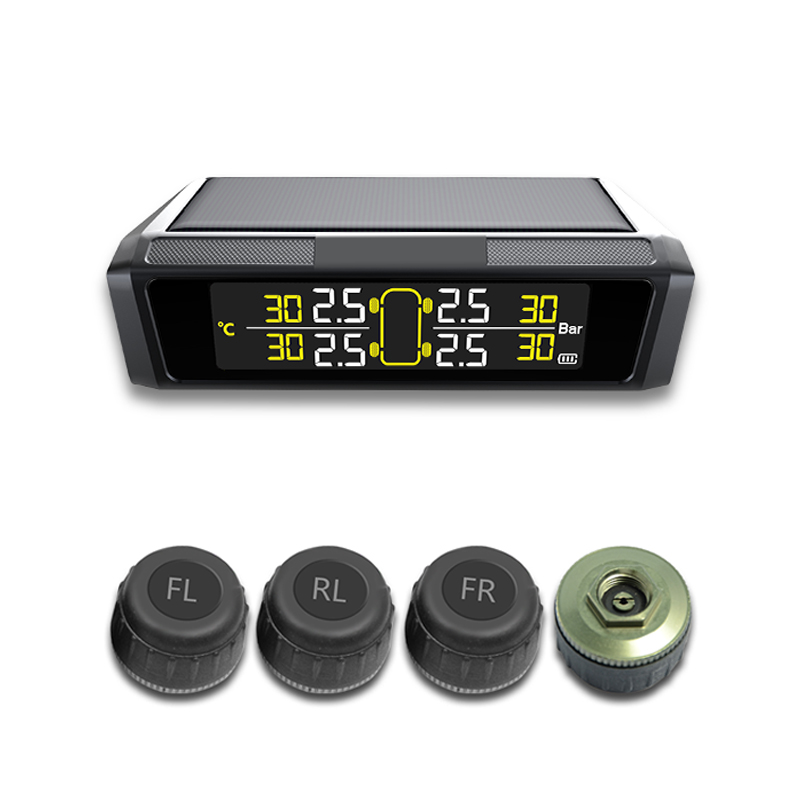

CDS600+CN202

Category：3.2.1 Car TPMS
Views：628
Car TPMS, Hot Product
Order online


Features

• High-definition colorful LCD display, simultaneously show 4 tires pressure

• Pressure range: 0-8Bar / 0-116PSI

• Sensor preset in factory

• Display can be charged by solar energy or mini USB charging slot

• Intelligent design for power saving of display

• Self-testing for each power on

• High-capacity battery, can be used normally two months

• End users can set the threshold of tire pressure

• Convertible pressure unit (PSI / Bar)

• Sleeping mode available, Built-in G-sensor, can be wake up immediately when the car is moving.

• Display with visual and audible warning for tire pressure and temperature

• Low display battery warning

•From the car stop to start, Sensor can be wake up in 5s

Specifications

Technical specifications for display:

• Operating frequency: 433.92MHz ±68KHz

• Operating current: ≤7mA

• Static current: ≤100μA

• Operating voltage: 4.5-6V

• Operating temperature: -25℃-+85℃

• Built-in battery capacity: 3.7V/500mA

Technical specifications for external sensor:

• Operating frequency: 433.92MHz ±28KHz

• Operating voltage: 2.1-3.6V

• Operating current: ≤10mA

• Static current: ≤1uA

• Operating temperature: -20°C - +60℃

• Storage temperature: -20 °C - +85°C

• Battery model:maxell 1632

• Battery life: ≥1 years（the battery can be replacement)

• Weight: 9g ±1g

Certificates: CE, FCC and RoHs
